The Skinny

1. Data collection & processing

   ARC over many years has built a knowledge base of responses for queries that come up during disasters. It has noticed that responses to most of these queries are similar irrespective of the disaster and sees an opportunity to automate these responses and delegate only critical or unanswered queries to call center staff.

Access and transcribe voice data

Extract and index evergreen data

Evaluate evergreen data

2. NLP and language modeling

Important parts of speech and their attributes

Clause trees

Vector mapping of words

Language model uses

Looking at the extracted text corpus “grammatically” via a language model has various uses:

1. Helps us index the text corpus the right way so we can retrieve the right responses

2. Gives us a sense of how complicated a problem we are dealing with

3. Will draw up an architecture of how we want to structure Intents, Entities and Slots for any slot-based chat system we might use like DialogFlow, Lex etc…

4. For all un-avoidable shortcomings of cloud offerings like DialogFlow, language models give us a very reliable fall back to handle queries by defining simple manual rules (see upcoming section)

Frameworks and libraries we’ll use

Almost all functionality needed to build a language model is readily available in many local and cloud based SDKs. Parsers and POS taggers like Penn treebank have been around for many decades now and provide a high level of accuracy. Google cloud NLP’s syntax analysis API provides POS tagging and dependency information (for building clause trees) with just a single API call. We will hence rely on already available resources and not build any core functionality for language models from scratch. The only code we will write is to invoke these APIs, pass our dataset to them and to evaluate / visualize the results.

3. Building the chatbot entities and flows

Scope for improvement from analyzing past ARC projects

1. Tagging entire sentences as slot values

2. Specifying only 1 slot for an intent (with entire sentences as slot values)

3. Not being consistent with tagging slot values and tagging the same value for multiple slots

The first 2 errors stem from users getting frustrated with the right intents not being caught. Users hence take short cuts by tagging entire sentences in the hope of catching the right intent. While such techniques do ensure intents are caught they fail to fill slot values. From the screenshots above, the query “what should i do for volunteering” catches the intent FAQTopicIntent because this entire sentence is tagged as a slot value for FAQ_Subtopic. But now we have no idea that the user is talking about volunteering because the slot value is “what should i do for volunteering” when it should’ve just been “volunteering”.

Improving chatbot accuracy using the language model

DialogFlow, Amazon Lex etc.. are great frameworks but address a more generic problem. These frameworks aim to solve ALL NLU tasks and are very hard to customise for smaller and more specific use cases. Because the underlying models of such frameworks are very generic they need millions of sentences to be trained properly. As discussed above, these frameworks often result in lower accuracy for smaller use cases with no way to improve them other than the hacks discussed above. But our strategy of using a language model allows to have a good sense of which intents will have a good chance of being caught properly and which won’t even before we start training such systems. For intents where we have good training data, we can rely on the ML models of DialogFlow etc… and avoid the pitfalls that occur during training by using automated POS tagging to help us in tagging slots and assigning utterances to intents. The training and response accuracy of these intents can be measured using simple scripts or using existing 3rd party services like dashboard.io. For intents where we do not have enough training data or the evaluation numbers are very low, we can formulate simple manual rules like so:

• If the VERB is ‘donate’ with no OBJECT

  • Ask the user what they want to donate

• If the VERB is ‘donate’ with a SUBJECT in the first person and an OBJECT

  • We should ask them to login to pull up their details

Such manual rules can slowly be phased out and move to DialogFlow once we have built enough training utterances for them. As our chatbots offerings grow, there will always be intents served by black box ML models from cloud systems and custom ML models / manual rules. With the custom ones slowly progressing to cloud systems as we build more training data for them.

4. Sentiment Analysis

Many cloud services provide ready API to analyze the sentiment of a “document”. In our case, a document will be just 2 - 3 lines of a user’s utterance. These services rely on the size of a document being large (like an article) to accurately predict its sentiment. Also, the definition of sentiment by such services does not map directly to what we are looking for. Such services concentrate more on the sentiment being positive or negative and not on the criticality expressed.

First step to build a sentiment analysis for our case is to tag phrases and words that have expressed criticality in our text corpus. We will then need to analyse these tags to see what parts of speech these critical words occur in. Another part of speech we would normally ignore are the punctuation marks that occur at the end of a sentence. Repeated exclamation marks for e.x. Many voice to text cloud offerings provide support to add punctuation in the converted text, so our call center data is also covered. Words, phrases tagged as critical, their parts of speech and neighbouring words along with non-critical words, their parts of speech and neighbouring words will form the training corpus for sentiment analysis.

With the training data, we will have to pick features to classify a query as critical or not. Examples of such features include:

1. Number of repeated punctuation marks at the end of a query

2. TF-IDF weighting of words w.r.t critical or not-critical tags

3. TF-IDF weighting of neighboring / context words etc…

This training data will be split into testing and training data using N-fold cross validation to make sure the ML is being tested on data it hasn’t seen before while ensuring that a good mix of the data is utilized for training.

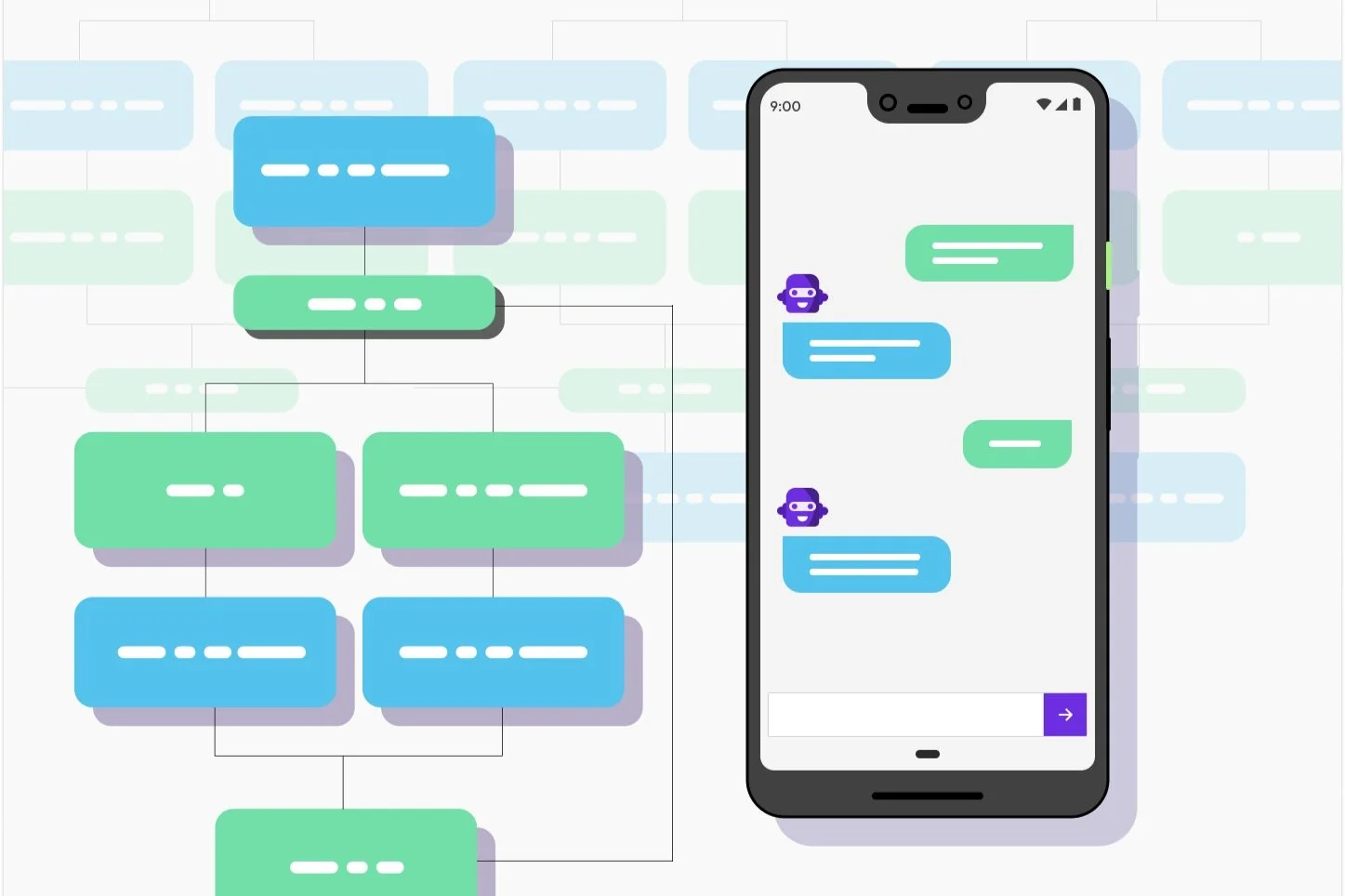

After we are able to understand a query and respond to them, we will have to build a conversation flow tailored to each channel. Here is where we tailor a different conversation design for each channel while making them share entities, intents etc… This step is also where we refer to the indexed text corpus to respond to queries. These responses will also vary by the channel.

Implement custom integrations for the 3 channels

Every channel’s custom conversation flow, will need to interface with different APIs (3rd party or within ARC). In this step we will be completing the conversation flow for each channel by integrating it with other services and fitting in the chatbots with the rest of ARC ecosystem.

The web chatbot is the only channel that will need a custom UI to be built. Building a UI for such a bot, keeping in mind ARC’s current website architecture involves the following steps:

1. Research packages that provide a clean chat UI using react JS

2. Build UI for the bot using a researched UI package

3. Ensure the UI follows the guidelines provided by ARC

4. Ensure UI is mobile responsive

5. iFrame code to load react UI from our backend and make it work with the rest of the HTML website

6. Code to show a loading UI while the iFrame loads

Access voice or text data in the new language

1. Transcribe any voice data to text and evaluate the performance of this transcription

2. Annotate the text corpus with tags that we came up for the English text corpus. It is very unlikely that we will encounter tags that were used for the English corpus and not in the Spanish corpus and vice versa. For each of these cases we will need to understand why this is so and what the impact of it could be. For the purposes of this proposal, it is safe to assume that annotation tags used for English will suffice for Spanish as well.

3. Build a new language model for the new language. It will be important to understand the new language so this step is unavoidable. But all the 3rd party services we will be using to build the language model will have support for Spanish as well. Our code that interfaces with these services will be written in a language agnostic way so both (or any future languages) can share the same codebase.

4. Create entities, intents and slots for Spanish in DialogFlow (or any other cloud service). This again is a limitation of the cloud services. The cloud services need to be re-trained for the new language with new training phrases, intents etc… But as with English, this step will be driven by the language model and will hence make it very easy to train for a new language while avoiding the common pitfalls encountered during training. We will also keep the same intents for both languages with similar slots. This way we will be able to understand that a user is asking about shelter information whether they ask it in English or Spanish

All integrations with API outside the chatbot (APIs inside ARC or outside ARC) will be passed a language parameter with the current language of the user. This way the 3rd party API can respond in a language specific way.

Disaster specific vs generic content

Right from the initial stages of the project, we will make an effort to differentiate between dynamic information that is disaster specific (like shelter information) and static information that is evergreen. This dynamic information will be attempted to be filled by API like Shelter Lookup, Local chapter lookup etc... Outside of such information we will need to understand what information will change by disasters to scope out how to easily add and remove disaster specific content.

We anticipate that a team of 2 senior AI engineers and 2 full stack engineers will be able to complete the phase 1 in about 12-15 weeks. If additional resources need to be used to complete the project, Pirates will do it without charging any additional fees to ARC.
